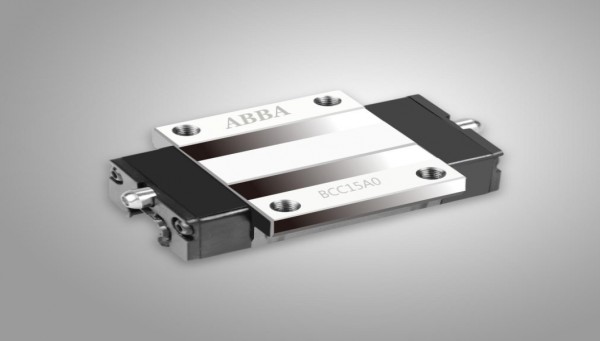

BC Ball Cage Linear Guideway

Description

BC Series
Cage inside.
High speed, low noise
Free Lubricant, long service life.
Heavy load capacity, high rigidity.
Equal load capacity in four directions.

[More for Specifiction]

BC Ball Cage Linear Guideway
LINEAR GUIDEWAY (BC Series)
BCH-A&AL BCH-B&BL BCN-A&AL BCN-B&BL
BCS-A&AL BCS-B&BL BCX-B&BL

BCH-A&AL

Model No.	Assembly(mm)				BR block(mm)							BR rail(mm)
	H	W	W2	E	L	B×J	MQ×	L1	Oil hole	T1	N	W1	H1	F	d×D×h
BCH15A	24	48	16	3	74.4	38 x 30	M5 X 8	48	ø3	5.5	5	15	13	60	4.5X7.5X5.3
BCH15AL					89.4			63
BCH20A	30	63	21.5	4.6	89	53X40	M6 X10	59	M6X1	8	6.5	20	16.5	60	6X9.5X8.5
BCH20AL					108			78
BCH25A	36	70	23.5	5.8	102	57X45	M8X12	71	M6X1	10	6.5	23	20	60	7X11X9
BCH25AL					119			88
BCH30A	42	90	31	7	116	72X52	M10X15	80	M6X1	11	6.5	28	23	80	9X14X12
BCH30AL					141			105
BCH35A	48	100	33	7.5	132	82X62	M10X15	93	M6X1	12	6.5	34	26	80	9X14X12
BCH35AL					162			123
BCH45A	60	120	37.5	8.9	150	100X80	M12X18	106	M8X1	16	13	15	32	105	14X20X17
BCH45AL					184			140
BCH55A	70	140	43.5	12.7	181	116X95	M14X21	131	M8X1	20	13	53	38	120	16X23X20
BCH55AL					223			173

Model No.	Ref. Data(mm)		Basic Load Rating (kgf)		Static Moment(kgf×m)			Weight
Model No.	Lmax	G	Dynamic(C)	Static(CO)	Mx	My	Mz	Block(kgf)	Rail(kgf/M)
BCH15A	4000	20	1350	2310	14.5	15.8	15.8	0.22	1.3
BCH15AL	4000	20	1620	3060	19.1	27	27	0.29	1.3
BCH20A	4000	20	2120	3680	32.9	30.4	30.4	0.45	2.3
BCH20AL	4000	20	2680	4830	43	52	52	0.62	2.3
BCH25A	4000	20	3030	5040	51.3	51.8	51.8	0.75	3.2
BCH25AL	4000	20	3520	6230	63.5	77.2	77.2	0.9	3.2
BCH30A	4000	20	4300	6410	79	72	72	1.31	4.5
BCH30AL	4000	20	5120	8850	105	124	124	1.55	4.5
BCH35A	4000	20	6000	9320	140	126	126	1.9	6.2
BCH35AL	4000	20	7020	12260	174	214	214	2.55	6.2
BCH45A	4000	22.5	7980	15150	245	187	187	3.3	10.4
BCH45AL	4000	22.5	9650	16040	320	315	315	4.2	10.4
BCH55A	4000	30	12350	19000	466	355	355	5.4	14.5
BCH55AL	4000	30	15500	24900	580	600	600	7.1	14.5

BCH-B&BL

Model No.	Assembly(mm)				BR block(mm)							BR rail(mm)
	H	W	W2	E	L	B×J	MQ×	L1	Oil hole	T1	N	W1	H1	F	d×D×h
BCH15B	28	34	9.5	3	74.4	26X26	M4X6.4	48	ø3	9.5	5	15	13	60	4.5X7.5X5.3
BRH15BL					89.4	26X34		63
BCH20B	30	44	12	4.6	89.4	26X34	M5X8	63	M6X1	8	6.5	20	16.5	60	6X9.5X8.5
BCH20BL					89	32X36		59
BCH25B	40	48	12.5	5.8	102	32X50	M6X9.6	78	M6X1	14	6.5	23	20	60	7X11X9
BCH25BL					119	35X50		71
BCH30B	45	60	16	7	116	40X60	M8X12.8	88	M6X1	14	6.5	28	23	80	9X14X12
BCH30BL					141	40X60		80
BCH35B	55	70	18	7.5	132	50X50	M8X12.8	105	M6X1	19	6.5	34	26	80	9X14X12
BCH35BL					162	50X72		93
BCH45B	70	86	20.5	8.9	150	60X60	M10X16	123	M8X1	26	13	45	32	105	14X20X17
BCH45BL					184	60X80		106
BCH55B	80	100	23.5	12.7	181	75X75	M12X19	121	M8X1	30	13	53	38	120	16X23X20
BCH55BL					223	75X95		156.1

Model No.	Ref. Data(mm)		Basic Load Rating (kgf)		Static Moment(kgf×m)			Weight
Model No.	Lmax	G	Dynamic(C)	Static(CO)	Mx	My	Mz	Block(kgf)	Rail(kgf/M)
BCH15B	4000	20	1350	2310	14.5	15.8	15.8	0.2	1.3
BCH15BL	4000	20	1620	3060	19.1	27	27	0.25	1.3
BCH20B	4000	20	2120	3680	32.9	30.4	30.4	0.35	2.3
BCH20BL	4000	20	2680	4830	43	23.4	23.4	0.47	2.3
BCH25B	4000	20	3030	5040	51.3	51.8	51.8	0.7	3.2
BCH25BL	4000	20	3520	6230	63.5	77.2	77.2	0.9	3.2
BCH30B	4000	20	4300	6410	79	72	72	1.1	4.5
BCH30BL	4000	20	5210	8550	105	124	124	1.4	4.5
BCH35B	4000	20	6000	9320	140	126	126	1.7	6.2
BCH35BL	4000	20	7020	12260	184	214	214	2.2	6.2
BCH45B	4000	22.5	7980	12150	245	187	187	3.1	10.4
BCH45BL	4000	22.5	9650	16040	320	315	315	4	10.4
BCH55B	4000	30	12350	19000	446	355	355	5.2	14.5
BCH55BL	4000	30	15500	24900	580	600	600	6.7	14.5

BCN-A&AL

Model No.	Assembly(mm)				BR block(mm)							BR rail(mm)
	H	W	W2	E	L	B×J	MQ×	L1	Oil hole	T1	N	W1	H1	F	d×D×h
BCN25A	31	70	23.5	5.8	102	59X45	M8X12	71	M6X1	5	6.5	23	20	60	7X11X9
BCN25AL					119			88
BCN30A	38	90	31	7	116	72X52	M10X15	80	M6X1	7	6.5	2.8	23	80	9X14X12
BCN30A					141			105
BCN35A	44	100	33	7.5	132	82X62	M10X15	93	M6X1	8	6.5	34	26	80	9X14X12
BCN35AL					162			123
BCN45A	52	120	37.5	8.9	150	100X80	M12X18	106	M8X1	8	13	45	32	105	14X20X17
BCN45AL					184			140
BCN55A	63	140	43.5	12.7	181	116X95	M14X21	131	M8X1	13	13	53	38	120	14X23X20
BCN55AL					223			173

Model No.	Ref. Data(mm)		Basic Load Rating (kgf)		Static Moment(kgf×m)			Weight
Model No.	Lmax	G	Dynamic(C)	Static(CO)	Mx	My	Mz	Block(kgf)	Rail(kgf/M)
BCN25A	4000	20	3030	5040	51.3	51.8	51.8	0.65	3.2
BCN25AL	4000	20	3520	6230	63.5	77.2	77.2	0.8	3.2
BCN30A	4000	20	4300	6410	79	72	72	1.2	4.5
BCN30AL	4000	20	5210	8550	105	124	124	1.4	4.5
BCN35A	4000	20	6000	9320	140	126	126	1.77	6.2
BCN35AL	4000	20	7020	12260	184	214	214	2.3	6.2
BCN45A	4000	22.5	7980	12150	245	187	187	3.1	10.4
BCN45AL	4000	22.5	9650	16040	320	315	315	4	10.4
BCN55A	4000	30	12350	19000	446	355	355	4.93	14.5
BCN55AL	4000	30	15500	24900	580	600	600	6.4	14.5

BCS-A&AL

Assembly(mm)				BR block(mm)							BR rail(mm)
H	W	W2	E	L	B×J	MQ×	L1	Oil hole	T1	N	W1	H1	F	d×D×h
BCS20A	28	63	21.5	4.6	89	49x32	M6x10	59	M6x1	6	6.5	20	16.5	60	6x9.5x8.5
BCS25A	33	70	23.5	5.8	102	60x35	M8X12	71	M8x1	7	6.5	23	20	60	7x11x9
BCS55A	68	140	43.5	12.7	181	116x75	M14x21	131	M8x1	18	13	53	38	120	16x23x20
BCS55AL	68	140	43.5	12.7	223	116x75	M14x21	173	M8x1	18	13	53	38	120	16x23x20

Model No.	Ref. Data(mm)		Basic Load Rating (kgf)		Static Moment(kgf×m)			Weight
Model No.	Lmax	G	Dynamic(C)	Static(CO)	Mx	My	Mz	Block(kgf)	Rail(kgf/M)
BCS20A	4000	20	2120	3680	33.9	30.4	30.4	0.4	2.3
BCS25A	4000	20	3030	5040	51.3	51.8	51.8	0.68	3.2
BCS55A	4000	20	12350	19000	446	335	355	5.2	14.5
BCS55AL	4000	20	15500	24900	580	600	600	6.9	14.5
