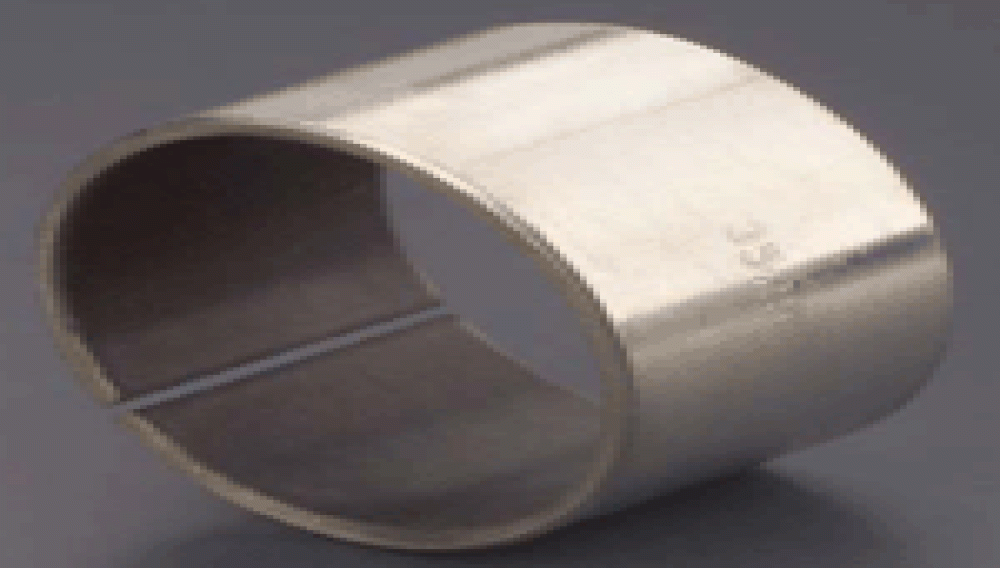

Bearing Bush


Description


We are an eminent name, which is engaged in delivering Bearing Bush to respectable clients. This range of bush bearings is sourced from trusted vendors of the market. In addition to this, the offered range of bush bearings is available in different customized dimensions, shapes and allied specifications in accordance with the diverse demands of clients.

Features:



  • Dimensional accuracy
  • Resistant against corrosion
  • Longer service life
  • High compressive strength


Specifications:


  • Steel backed and sintered bronze
  • Maximum load capacity: 140 N/mm
  • Static load: 250 N/mm2
  • Dynamic load: 140 N/mm
  • Maximum speed limit: 2 m/s
  • Dry friction: 2.5 m/s
  • Oil lubrication: 5.0 m/s
  • Temperature limit: 195 °c to 280 °c
  • Dry friction: 3.6 N/mm2 m/s
  • Oil friction: 50 N/mmm/s
  • Wear amulet limit: 0.05 mm
  • Friction coefficient: Dry friction: .08 to 0.20
  • Oil friction: .02 to 0.07
  • Thermal conductivity: 42 W/m k
  • Coefficient of thermal extension: 11 x 106/k
