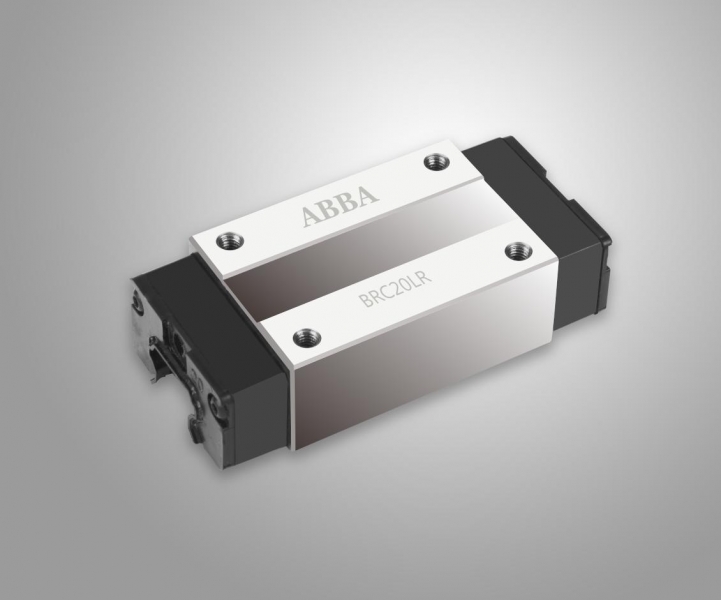

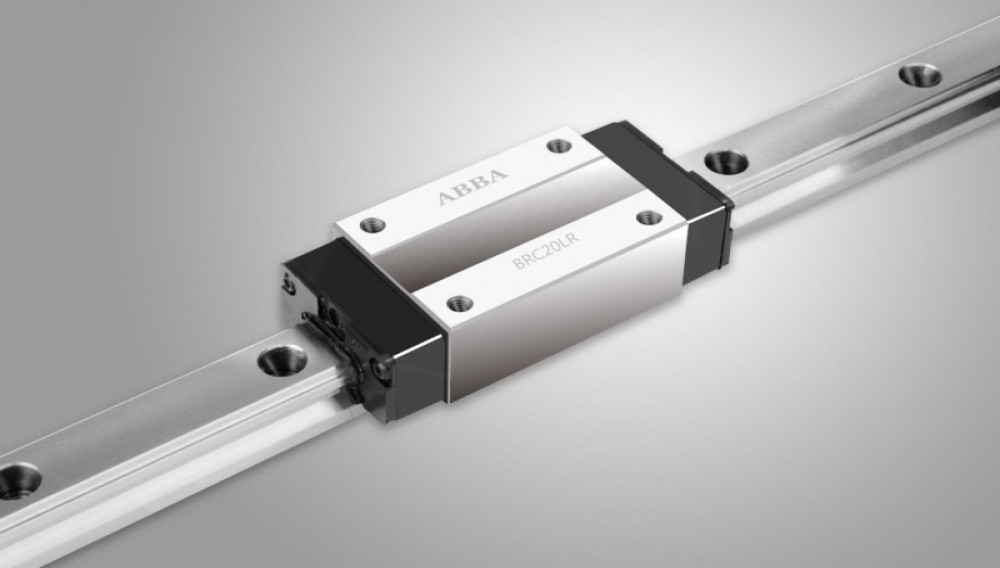

BR-LR (SLIM-LINE CARRIAGE)

Description

BR-LR (Slim-line carriage)

(Extended length, Extended height)
Built-in long life lubrication.
Equal load capacities in four directions.
Smooth running due to new ball re-circulation.
High rigidity-4-row angular contact.
International standard dimension.
High accuracy Low friction Low maintenance.
High speed, low noise.
Integral all-round sealing.
Interchangeability.
Environment protection green production.

[More for Specifiction]

LINEAR GUIDEWAY (BR Series)
BRH-A&AL BRH-B&BL BRS-B&BL&BS BRS-A&AS
BRS-C&CS BRH-C&CL BRX-B&BL

LINEAR GUIDEWAY
BRH-A&AL

Model No.	Assembly(mm)				BR block(mm)							BR rail(mm)
	H	W	W2	E	L	B×J	MQ×	L1	Oil hole	T1	N	W1	H1	F	d×D×h
BRH15A	24	47	16	4.6	66	38×30	M5×8	40	Ø3	4.3	5	15	14	60	4.5×7.5×5.3
BRH20A	30	63	21.5	5	77.8	53×40	M6×9	48.8	M6×1	5	6.5	20	18	60	6×9.5×8.5
BRH20AL					92.4			63.4
BRH25A	36	70	23.5	7	88	57×45	M8×12	57	M6×1	5	6.5	23	22	60	7×11×9
BRH25AL					110.1			79.1
BRH30A	42	90	31	9	109	72×52	M10×12	72	M6×1	7	6.5	28	26	80	9×14×12
BRH30AL					131.3			94.3
BRH35A	48	100	33	9.5	109	82×62	M10×13	80	M6×1	8	6.5	34	29	80	9×14×12
BRH35AL					134.8			105.8
BRH45A	60	120	37.5	14	138.2	100×80	M12×15	105	M8×1	10	13	45	38	105	14×20×17
BRH45AL					163			129.8
BRH55A	70	140	43.5	15	170	116×95	M14×20	121	M8×1	11	13	53	44	120	16×20×20
BRH55AL					205.1			156.1

Model No.	Ref. Data(mm)		Basic Load Rating (kgf)		Static Moment(kgf×m)			Weight
Model No.	Lmax	G	Dynamic(C)	Static(CO)	Mx	My	Mz	Block(kgf)	Rail(kgf/M)
BRH15A	4000	20	850	1650	10	8	8	0.19	1.4
BRH20A	4000	20	1450	2560	22	18	18	0.4	2.6
BRH20AL	4000	20	1900	3330	28.6	23.4	23.4	0.52	2.6
BRH25A	4000	20	2140	4000	36	32	31	0.57	3.6
BRH25AL	4000	20	2996	5600	50.4	44.8	43.4	0.75	3.6
BRH30A	4000	20	2980	5490	60	50	49	1.1	5.2
BRH30AL	4000	20	3900	7190	78.5	65	65	1.4	5.2
BRH35A	4000	20	3960	7010	96	75	73	1.6	7.2
BRH35AL	4000	20	5230	9270	125	95	95	2	7.2
BRH45A	4000	22.5	6740	12100	216	170	168	2.7	12.3
BRH45AL	4000	22.5	8330	14950	267	210	210	3.6	12.3
BRH55A	4000	30	9940	17100	367	293	288	5	16.9
BRH55AL	4000	30	12820	22060	473	380	375	6.4	16.9

BRH-B&BL

Model No.	Assembly(mm)				BR block(mm)							BR rail(mm)
	H	W	W2	E	L	B×J	MQ×	L1	Oil hole	T1	N	W1	H1	F	d×D×h
BCH15B	28	34	9.5	3	74.4	26X26	M4X6.4	48	ø3	9.5	5	15	13	60	4.5X7.5X5.3
BRH15BL					89.4	26X34		63
BCH20B	30	44	12	4.6	89.4	26X34	M5X8	63	M6X1	8	6.5	20	16.5	60	6X9.5X8.5
BCH20BL					89	32X36		59
BCH25B	40	48	12.5	5.8	102	32X50	M6X9.6	78	M6X1	14	6.5	23	20	60	7X11X9
BCH25BL					119	35X50		71
BCH30B	45	60	16	7	116	40X60	M8X12.8	88	M6X1	14	6.5	28	23	80	9X14X12
BCH30BL					141	40X60		80
BCH35B	55	70	18	7.5	132	50X50	M8X12.8	105	M6X1	19	6.5	34	26	80	9X14X12
BCH35BL					162	50X72		93
BCH45B	70	86	20.5	8.9	150	60X60	M10X16	123	M8X1	26	13	45	32	105	14X20X17
BCH45BL					184	60X80		106
BCH55B	80	100	23.5	12.7	181	75X75	M12X19	121	M8X1	30	13	53	38	120	16X23X20
BCH55BL					223	75X95		156.1

Model No.	Ref. Data(mm)		Basic Load Rating (kgf)		Static Moment(kgf×m)			Weight
Model No.	Lmax	G	Dynamic(C)	Static(CO)	Mx	My	Mz	Block(kgf)	Rail(kgf/M)
BCH15B	4000	20	1350	2310	14.5	15.8	15.8	0.2	1.3
BCH15BL	4000	20	1620	3060	19.1	27	27	0.25	1.3
BCH20B	4000	20	2120	3680	32.9	30.4	30.4	0.35	2.3
BCH20BL	4000	20	2680	4830	43	23.4	23.4	0.47	2.3
BCH25B	4000	20	3030	5040	51.3	51.8	51.8	0.7	3.2
BCH25BL	4000	20	3520	6230	63.5	77.2	77.2	0.9	3.2
BCH30B	4000	20	4300	6410	79	72	72	1.1	4.5
BCH30BL	4000	20	5210	8550	105	124	124	1.4	4.5
BCH35B	4000	20	6000	9320	140	126	126	1.7	6.2
BCH35BL	4000	20	7020	12260	184	214	214	2.2	6.2
BCH45B	4000	22.5	7980	12150	245	187	187	3.1	10.4
BCH45BL	4000	22.5	9650	16040	320	315	315	4	10.4
BCH55B	4000	30	12350	19000	446	355	355	5.2	14.5
BCH55BL	4000	30	15500	24900	580	600	600	6.7	14.5

BRS-B&BL&BS

Model No.	Assembly(mm)				BR block(mm)							BR rail(mm)
	H	W	W2	E	L	B×J	MQ×	L1	Oil hole	T1	N	W1	H1	F	d×D×h
BRS15B	24	34	9.5	4.6	66	26×26	M4×5.6	40	Ø3	4.3	5	15	14	60	4.5×7.5×5.3
BRS15BS					47.6	26×-		21.6
BRS20B	28	42	11	5	77.8	32×32	M5×7	48.8	M6×1	5	6.5	20	18	60	6×9.5×8.5
BRS20BS					58	32×-		28
BRS25B	33	48	12.5	7	88	35×35	M6×8.4	57	M6×1	4.8	6.5	23	22	60	7×11×9
BRS25BS					62.5	35×-		31.5
BRS25BL					110.1	35×50		79.1
BRS30B	42	60	16	9	109	40×40	M8×11.2	72	M6×1	7	6.5	28	26	80	9×14×12
BRS30BS					75.6	40×-		38.6
BRS30BL					131.3	40×60		94.3
BRS35B	48	70	18	9.5	109	50×50	M8×11.2	80	M6×1	8	6.5	34	29	80	9×14×12
BRS35BS					74.7	50×-		45.7
BRS35BL					134.8	50×72		105.8
BRS45B	60	86	20.5	14	138.2	60×60	M10×14	105	M8×1	8.5	13	45	38	105	14×20×17
BRS45BL					163	60×80		129.8
BRS55B	68	100	23.5	15	170	75×75	M12×15	121	M8×1	8	13	53	44	120	16×23×20
BRS55BL					205.1	75×95		156.1

Model No.	Ref. Data(mm)		Basic Load Rating (kgf)		Static Moment(kgf×m)			Weight
Model No.	Lmax	G	Dynamic(C)	Static(CO)	Mx	My	Mz	Block(kgf)	Rail(kgf/M)
BRS15B	4000	20	850	1650	10	8	8	0.17	1.4
BRS15BS	4000	20	150	950	6	4.8	4.8	0.1	1.4
BRS20B	4000	20	1450	2560	22	18	18	0.26	2.6
BRS20BS	4000	20	830	1470	12.6	10.3	10.3	0.17	2.6
BRS25B	4000	20	2140	4000	36	32	31	0.38	3.6
BRS25BS			1190	2230	20	17.5	17.2	0.21
BRS25BL			2996	5600	50.4	44.8	43.4	0.53
BRS30B	4000	20	2980	5490	60	50	49	0.81	5.2
BRS30BS			1595	2940	32	27	27	0.48
BRS30BL			3900	7190	78.5	65	65	1.06
BRS35B	4000	20	3960	7010	96	75	73	1.2	7.2
BRS35BS			2260	4000	54.5	42.5	41.5	0.8
BRS35BL			5230	9270	125	95	95	1.6
BRS45B	4000	22.5	6740	12100	216	170	168	2.1	12.3
BRS45BL	4000	22.5	8330	14950	267	210	210	2.6	12.3
BRS55B	4000	30	9940	17100	367	293	288	3.6	16.9
BRS55BL	4000	30	12820	22000	473	380	375	4.6	16.9

BRS-A&AS

Model No.	Assembly(mm)				BR block(mm)							BR rail(mm)
Model No.	H	W	W2	E	L	B×J	MQ×	L1	Oil hole	T1	N	W1	H1	F	d×D×h
BRS20AS	28	59	19.5	5	57	49	M6×7	28	M6×1	5	6.5	20	18	60	6×9.5×8.5
BRS25A	33	73	25	7	88	60×35	M8×9	57	M6×1	4.8	6.5	23	22	60	7×11×9
BRS25AS	33	73	25	7	62.5	60	M8×9	31.5	M6×1	4.8	6.5	23	22	60	7×11×9

Model No.	Ref. Data(mm)		Basic Load Rating kgf)		Static Moment(kgf×m)			Weight
Model No.	Lmax	G	Dynamic(C)	Static(CO)	Mx	My	Mz	Block(kgf)	Rail(kgf/M)
BRS20AS	4000	20	830	1470	12.6	10.3	10.3	0.17	2.6
BRS25A	4000	20	2140	4000	36	32	31	0.5	3.6
BRS25AS	4000	20	1190	2230	20	17.5	17.2	0.33	3.6

BRS-C&CS

Model No.	Assembly(mm)				BR block(mm)							BR rail(mm)
Model No.	H	W	W2	E	L	B×J	MQ×	L1	Oil hole	T1	N	W1	H1	F	d×D×h
BRS20CS	28	59	19.5	5	57	49	Ø5.5×7	28	M6×1	5	6.5	20	18	60	6×9.5×8.5
BRS25C	33	73	25	7	88	60×35	Ø7×9	57	M6×1	4.8	6.5	23	22	60	7×11×9
BRS25CS	33	73	25	7	62.5	60	Ø7×9	31.5	M6×1	4.8	6.5	23	22	60	7×11×9

Model No.	Ref. Data(mm)		Basic Load Rating (kgf)		Static Moment(kgf×m)			Weight
Model No.	Lmax	G	Dynamic(C)	Static(CO)	Mx	My	Mz	Block(kgf)	Rail(kgf/M)
BRS20CS	4000	20	830	1470	12.6	10.3	10.3	0.17	2.6
BRS25C	4000	20	2140	4000	36	32	31	0.5	3.6
BRS25CS	4000	20	1190	2230	20	17.5	17.2	0.33	3.6

BRH-C&CL

Model No.	Assembly(mm)				BR block(mm)							BR rail(mm)
	H	W	W2	E	L	B×J	MQ×	L1	Oil hole	T1	N	W1	H1	F	d×D×h
BRH15C	24	47	16	4.6	66	38×30	Ø4.5×8	40	Ø3	4.3	5	15	14	60	4.5×7.5×5.3
BRH20C	30	63	21.5	5	77.8	53×40	Ø5.5×9	48.8	M6×1	5.	6.5	20	18	60	6×9.5×8.5
BRH20CL
					92.4			63.4
BRH25C	36	70	23.5	7	88	57×45	Ø7×12	57	M6×1	5	6.5	23	22	60	7×11×9
BRH25CL					110.1			79.1
BRH30C	42	90	31	9	109	72×52	Ø9×12	72	M6×1	7	6.5	28	26	80	9×14×12
BRH30CL					131.3			94.3

Model No.	Ref. Data(mm)		Basic Load Rating (kgf)		Static Moment(kgf×m)			Weight
Model No.	Lmax	G	Dynamic(C)	Static(CO)	Mx	My	Mz	Block(kgf)	Rail(kgf/M)
BRH15C	4000	20	850	1650	10	8	8	0.19	1.4
BRH20C	4000	20	1450	2560	22	18	18	0.4	2.6
BRH20CL	4000	20	1900	3330	28.6	23.4	23.4	0.52	2.6
BRH25C	4000	20	2140	4000	36	32	31	0.57	3.6
BRH25CL	4000	20	2996	5600	50.4	44.8	43.4	0.72	3.6
BRH30C	4000	20	2980	5490	60	50	49	1.1	5.2
BRH30CL	4000	20	3900	7190	78.5	65	65	1.4	5.2
