Clip Top Chain

Description

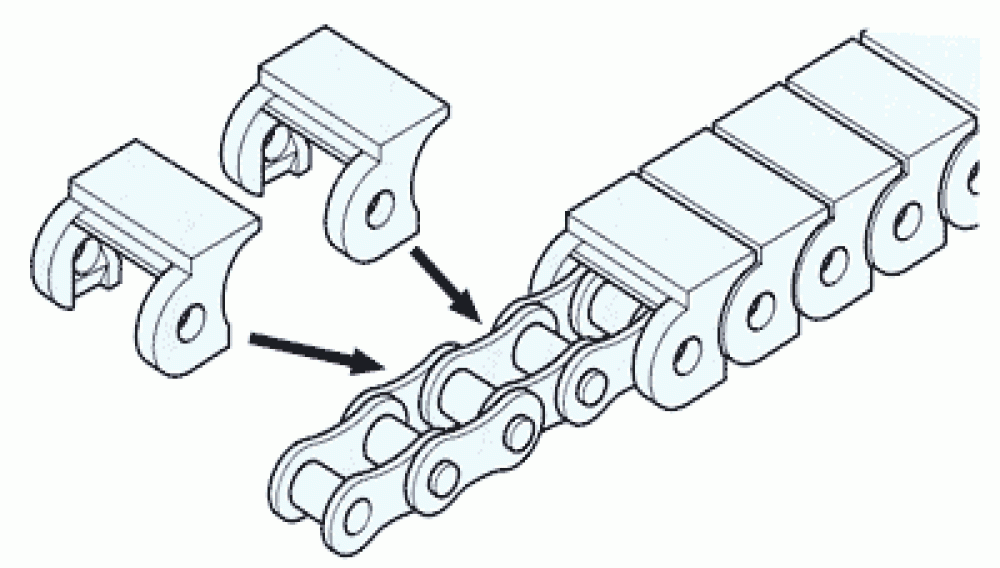

Clip Top Chain is a Steel Base Chain with an Engineering Plastic cover attached to each link of the Chain. It has the same Allowable Tensile Strength as Steel Chain while allowing materials and products to be placed directly onto the chain without concern of damage.

Dimensions-mm
Chain No.		Pitch P	Roller Dia. Dr	Width between Roller Link Plates Wb	Pin Dia. Dp
Std	NP	Pitch P	Roller Dia. Dr	Width between Roller Link Plates Wb	Pin Dia. Dp
RF06B-CT	RF06B-NP-CT	9.525	6.35	5.72	3.28
RS40-CT	RS40NP-CT	12.7	7.92	7.95	3.97
RS60-CT	RS60NP-CT	19.05	11.91	12.70	5.96

Dimensions-mm
Chain No.		Link Plate				Engineering Plastic Cover
Std	NP	t₁	t₂	H₁	H₂	h₁	h₂	W
RF06B-CT	RF06B-NP-CT	1.0	1.27	8.2	8.2	5.5	7.5	17.3
RS40-CT	RS40NP-CT	1.5	1.5	12.0	10.4	7.0	9.0	23.5
RS60-CT	RS60NP-CT	2.4	2.4	18.1	15.6	10.5	13.5	35.5

Dimensions-mm
Chain No.		Maximum Allowable Load kN {kgf}	Approx. Mass kg/m	Number of Links per unit
Std	NP	Maximum Allowable Load kN {kgf}	Approx. Mass kg/m	Number of Links per unit
RF06B-CT	RF06B-NP-CT	1.47 {150}	0.55	320
RS40-CT	RS40NP-CT	2.65 {270}	0.85	240
RS60-CT	RS60NP-CT	6.28 {640}	1.95	160

Operating Temperature: -10ºC ~ +80ºC
Max. Allowable Speed: 60m/min
High Friction specification: -10ºC ~ +50ºC
High Friction specification: 30m/min
