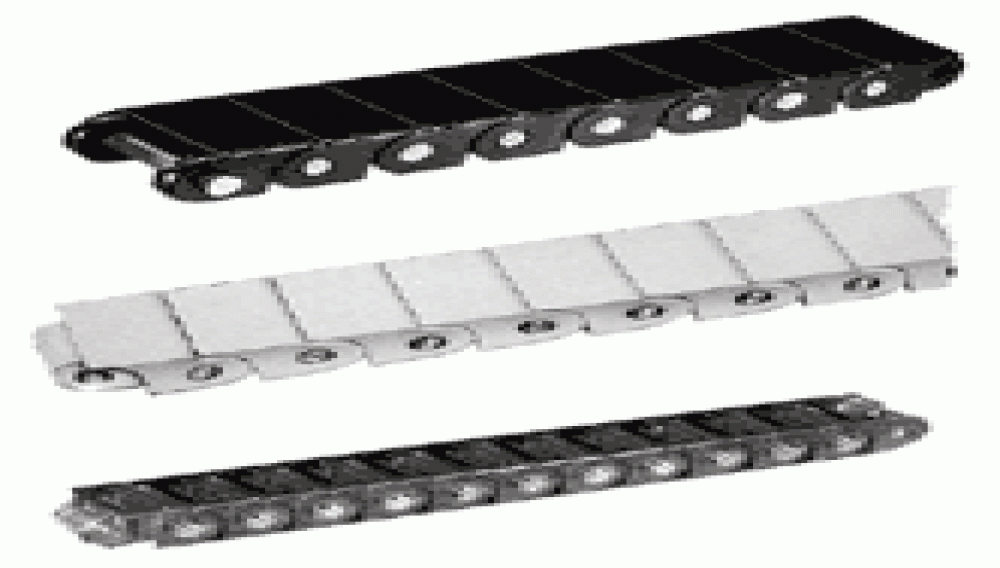

RS Plastic Chain

RS Plastic Chain consists of polyacetal chain links and 18-8 stainless

steel pins and operates

with standard roller chain sprockets based on power transmission roller chain.

Tsubaki RS-type has flat top side for power

transmission or conveying use. MWB and MWG specifications are also available.

"E" Series (Electro-Conductive Series)

The special plastic used in the "E" series is electro conductive and permits

electro-discharge.

These chains are suitable for applications where there is electric noise,

electric sparks,

or where dust collects due to static electricity. Volume resistivity :

"Y" & "SY" Series (Anti-Chemical Series)hhg

The amazing "Y" & "SY" Series utilizes engineered plastic which permits

the chain to perform well

even where chloride, acid, alkaline, oxidizers, and most organic solvents

are present.

"SY" series is a combination of a "Y" Series plastic block link and titanium pin

and performs

well even when exposed to sulphuric and hydrochloric acid.

"KV" Series (Heat Resistant Series)

The Tsubaki "KV" series is made of a resilient new engineered plastic which can

withstand environmentswhere temperatures reach 180 c in contrast to plastic

chain made  of conventional plastic, this chain will not lose its valuable properties

at high temperatures.

RS Type

Chain links are made of polyacetal. Pins are made of 18-8 stainless steel.
