RS Super Series Roller Chain

RS Super Series Roller Chain

Enquiry Now Add to Query Cart

Description

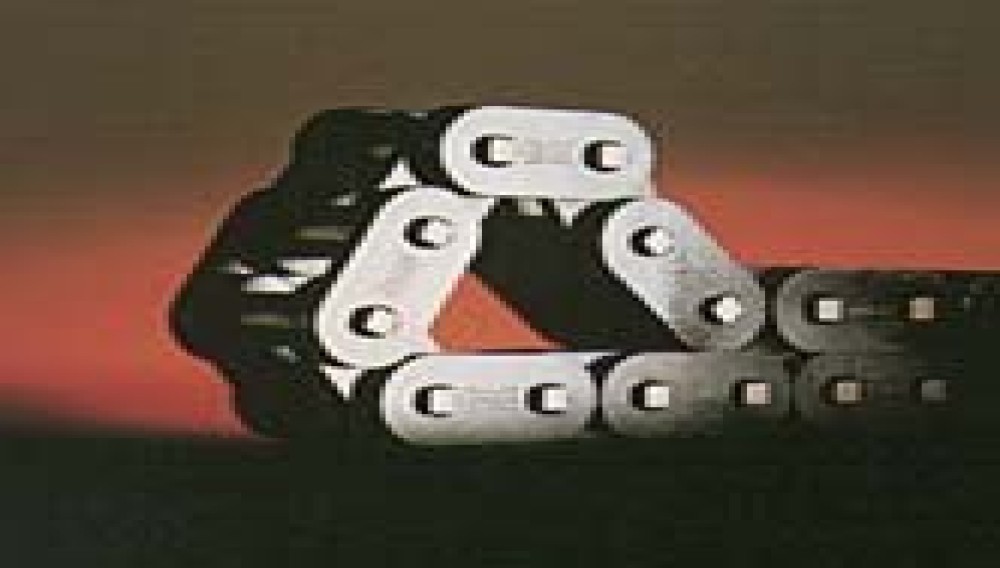

Super Series

Super Series

The dimensions of this series are identical to those of ANSI standard roller chains.

Link plates of the Super Series are designed to have a special shape.

The pitch holes are critically formed to improve their allowable load

by 25-30%. The pins are through hardened for greater shock load resistance.


Dimensions-mm
Chain No.
Pitch P
Roller Dia. R
Width between Roller Link Plates W
SUPER80
25.40
15.88
15.88
SUPER100
31.75
19.05
19.05
SUPER120
38.10
22.23
25.40
SUPER140
44.45
25.40
25.40
SUPER160
50.80
28.58
31.75
SUPER200
63.50
39.68
38.10
SUPER240
76.20
47.63
47.63



Dimensions-mm
Chain No.
Link Plate
Pin
Thickness
T
Height
H
Height
h
Dia.
D
From Pin Head to C.L. L1
From Pin end to C.L. L2
SUPER80
3.2
24.1
20.8
7.94
16.25
19.25
SUPER100
4.0
30.1
26.0
9.54
19.75
22.85
SUPER120
4.8
36.2
31.2
11.11
24.9
28.9
SUPER140
5.6
42.2
36.4
12.71
26.9
31.7
SUPER160
6.4
48.2
41.6
14.29
31.85
36.85
SUPER200
8.0
60.3
52.0
19.85
39.0
44.8
SUPER240
9.5
72.4
62.4
23.81
47.9
55.5


Dimensions-mm
Chain No.
Average Tensile Strength kN {kgf}
Maximum Allowable Load kN {kgf}
Approx. Mass kg/m
SUPER80
85.3 {8,700}
18.6 {1,900}
2.81
SUPER100
127 {13,000}
30.4 {3,100}
4.25
SUPER120
186 {19,000}
39.2 {4,000}
6.30
SUPER140
245 {25,000}
53.9 {5,500}
8.04
SUPER160
314 {32,000}
70.6 {7,200}
10.79
SUPER200
505 {51,500}
94.1 {9,600}
17.63
SUPER240
735 {75,000}
132.0 {13,500}
25.63



Offset links are not available. Riveted type chains will be provided unless otherwise

specified. Roll pin type chains will be provided upon request. Semi press-fitted

type connecting links will be supplied.
