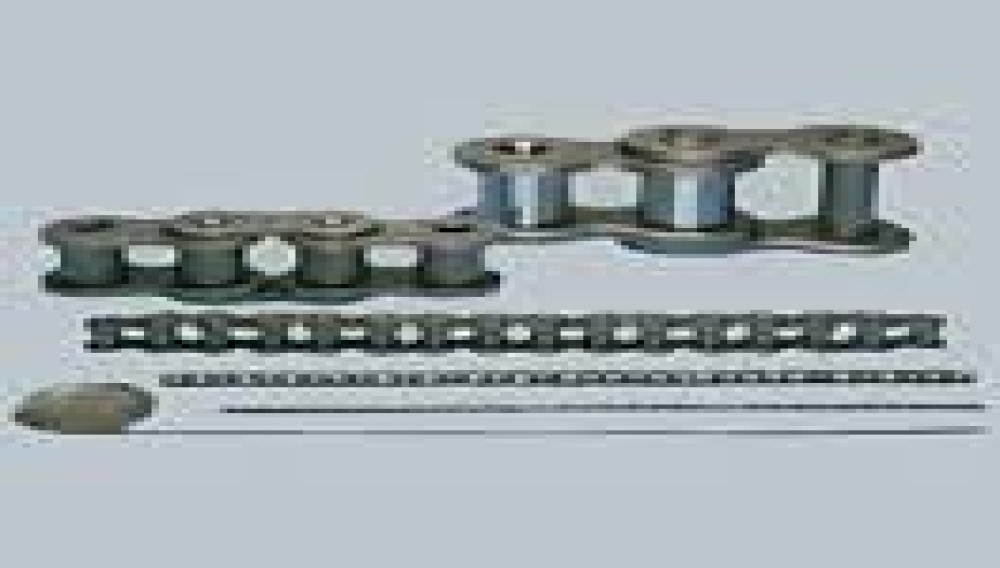

RS-T Series Roller Chain

RS-T Series Roller Chain

RS-T Series Roller Chain

Add to Query Cart

Send Enquiry Share

Description

T Series Chains have a greater shock load resistance and higher ultimate tensile

strength than comparable ANSI standard roller chains. This is accomplished

by using through hardened pins. The dimension of the chains are identical

to ANSI standard roller chains.



Dimensions-mm
Chain No.
Pitch P
Roller Dia. R
Width between Roller Link Plates W
RS60T
19.05
11.91
12.70
RS80T
25.40
15.88
15.88
RS100T
31.75
19.05
19.05
RS120T
38.10
22.23
25.40
RS140T
44.45
25.40
25.40
RS160T
50.80
28.58
31.75
RS200T
63.50
39.68
38.10
RS240T
76.20
47.63
47.63

Dimensions-mm
Chain No.
Link Plate
Pin
Thickness
T
Height
H
Height
h
Dia. D
From Pin Head to C.L.
L1
From Pin end to C.L.
L2
RS60T
2.4
18.1
15.6
5.96
12.85
14.75
RS80T
3.2
24.1
20.8
7.94
16.25
19.25
RS100T
4.0
30.1
26.0
9.54
19.75
22.85
RS120T
4.8
36.2
31.2
11.11
24.9
28.90
RS140T
5.6
42.2
36.4
12.71
26.9
31.7
RS160T
6.40
48.2
41.6
14.29
31.85
36.85
RS200T
8.0
60.3
52.0
19.85
39.0
44.8
RS240T
9.5
72.4
62.4
23.81
47.9
55.5

Dimensions-mm
Chain No.
Average Tensile Strength
kN {kgf}
Maximum Allowable Load
kN {kgf}
Approx. Mass
kg/m
RS60T
46.1 {4,700}
8.83 {900}
1.53
RS80T
78.5 {8,000}
14.7 {1,500}
2.66
RS100T
122 {12,400}
22.6 {2,300}
3.99
RS120T
177 {18,000}
30.4 {3,100}
5.93
RS140T
235 {24,000}
40.2 {4,100}
7.49
RS160T
304 {31,000}
53.0 {5,400}
10.10
RS200T
471 {48,000}
71.6 {7,300}
16.49
RS240T
686 {70,000}
99.0 {10,100}
24.50


Semi press-fitted type connecting links will be supplied.
