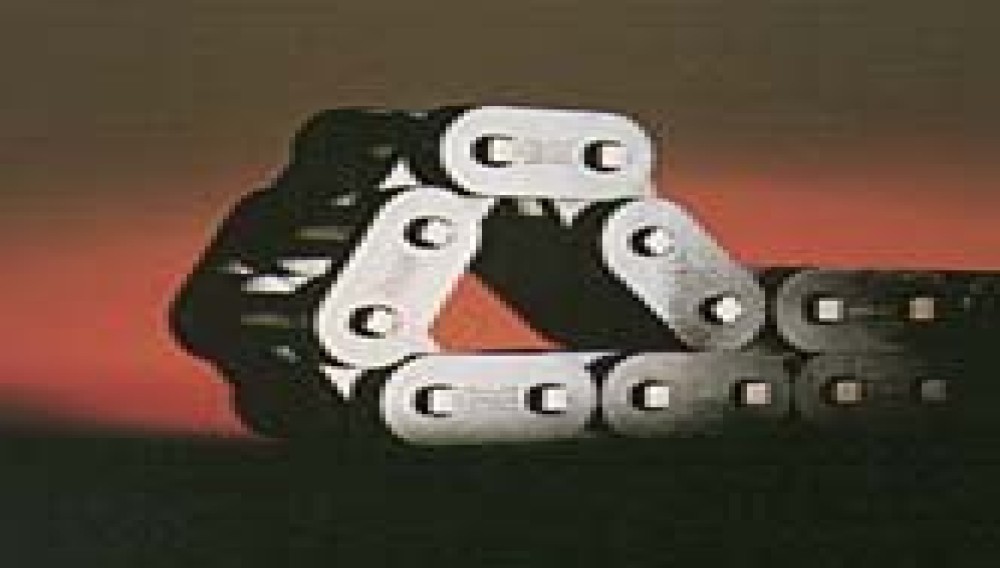

Ultra Super Series



Field test results show that the TSUBAKI Ultra Super Series has a greater

ultimate tensile strength and allowable load than any other roller chain manufactured.

With 170% higher allowable load than ANSI RS standard roller chains,

the Ultra Super Series allows selection of a chain up to 2 sizes smaller than

standard. Excellent for applications where heavy shock loads

or space limitations pose problems

Dimensions-mm
Chain No.
Pitch
P
Roller Dia.
R
Width between Roller Link Plates
W
US100
31.75
19.05
19.05
US120
38.10
22.23
25.40
US140
44.45
25.40
25.40
US160
50.80
28.58
31.75
US200
63.50
39.68
38.10
US240
76.20
47.63
47.63

Dimensions-mm
Chain No.
Link Plate
Pin
Thickness
T
Height
H
Dia.
D
From Pin Head to C.L.
L1
From Pin end to C.L.
L2
US100
4.8
30.1
10.32
22.35
25.35
US120
5.6
36.2
12.28
27.55
31.55
US140
6.4
42.2
13.97
29.50
34.20
US160
7.1
48.2
15.62
34.5
40.2
US200
9.5
60.3
20.41
42.95
50.95
US240
12.7
72.4
24.73
54.8
64.9

Dimensions-mm
Chain No.
Average Tensile Strength
kN {kgf}
Maximum Allowable Load
kN {kgf}
Approx. Mass
kg/m
US100
172 {17,500}
39.2 {4,000}
5.07
US120
245 {25,000}
53.9 {5,500}
7.22
US140
314 {32,000}
63.7 {6,500}
9.24
US160
392 {40,000}
85.3 {8,700}
12.19
US200
667 {68,000}
108.0 {11,000}
20.47
US240
981 {100,000}
151.0 {15,400}
31.69


RS standard sprockets can be used, if the sprocket teeth have been

hardened and the sprocket is not of the cast-iron type.

Chains should be lubricated using:

  • Drip method
  • Oil bath
  • Lubrication pump

Max. chain speed is 50 m/min.
Offset links are not available.
Riveted type chains will be supplied unless otherwise specified.
