Needle roller bearings have long been tried and tested machine elements for designing radially space-saving, very load-bearing bearings. In X-life design, they now convince with up to 50% longer service life.
Machined needle roller bearing
The load bearing capacity of the X-life needle roller bearings has been further increased by improving the surface quality. The dynamic load rating was increased by 13% compared to the previous needle roller bearings. The significantly impr...
Needle rings are single-row or double-row units consisting of cages and needle rollers. Since their radial height corresponds only to the diameter of the needle rollers, needle roller bearings enable bearings with minimal radial space. They are ...
Needle sleeves are open on both sides and are supplied with needle roller or full needle. Bearings with needle rings allow higher speeds than full-needle designs. Needle needle sleeves Due to the maximum number of needle rollers, full-needle n...
Needle boxes are closed on one side. They are thus well suited to the conclusion of bearings on shaft ends. This provides protection against accidents when the shaft rotates and the bearings are protected against dirt and moisture. The soi...

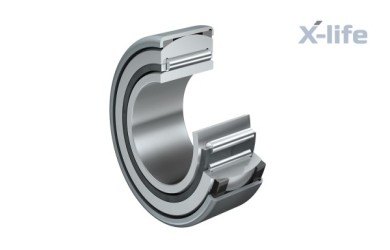

Aligning needle roller bearing...
Setting needle roller bearings are assemblies consisting of chipless formed outer sleeves, plastic support rings with hollow spherical inner form, outer rings with spherical outer surface, needle rings and removable inner rings. The bearings compens...
Inner rings are made of hardened bearing steel and have machined or ground raceways. They are used when: in needle rims, needle sleeves, needle bushes, needle bearings, the shaft can not be used as a career Needle roller bearings with wider ...
Axial needle roller Axial needle roller bearings are made of plastic or metal-axial cages with integrated needle rollers, have a very low axial height. They absorb high axial forces in one direction. Radial loads must be recorded separatel...
Sleeve freewheels are one-way couplings, consisting of thin-walled, non-cutting outer rings with clamping ramps, plastic cages, pressure springs and needle rollers. They transmit torques in one direction and are radially space-saving. The f...
